Product Description
L 300MM*W185MM*H380MM
Battery Capacity 2016Wh LFP
Lifecycle 6000 cycles to 80%
Battery voltage platform 3.2V
Single cell capacity 15Ah
Pack type 14 in series 3 in parallel
Input

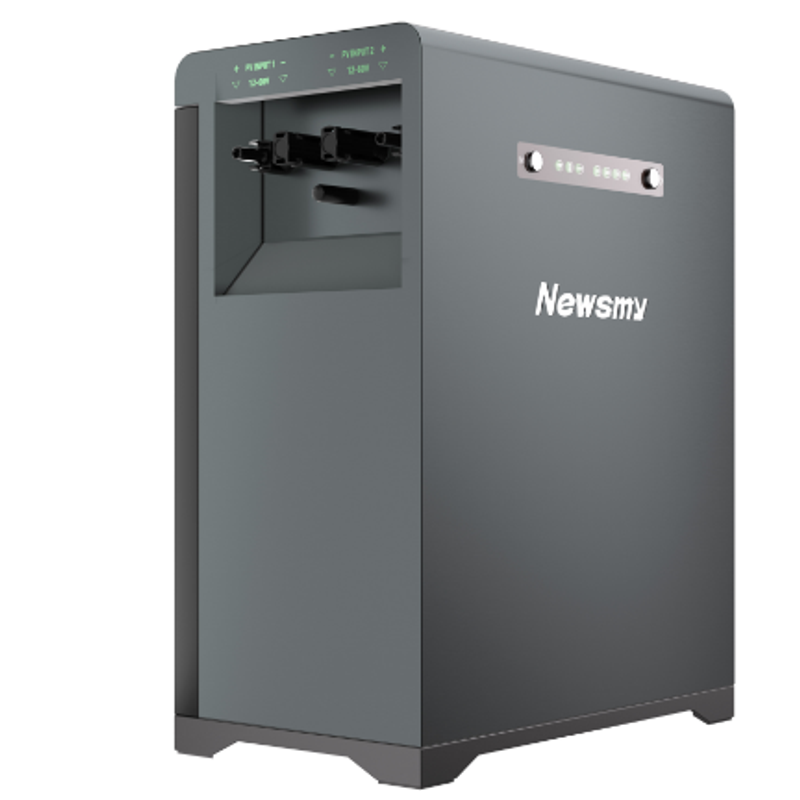

Port type Two sets of MC4 (Female connector is positive, male connector is negative)
Input voltage range Min 12V to Max 60V
Charging current Max 23A
Mppt Input Power 750W * 2
Output
Port type Two sets of MC4 (Female connector is positive, male connector is negative)
Output Voltage Range Min 25V to Max 51.1V
Rated Output Current 16A
Rated Output Efficiency 96% (Tested by 60V input)
Output Power 400W * 2
